Parametric Capacitor Search

Parametric search is here! Excited about this since it's been the top request from early users. You can now filter capacitors by specification and explore DC bias, ripple current temperature rise, ESR, and impedance curves for the results.

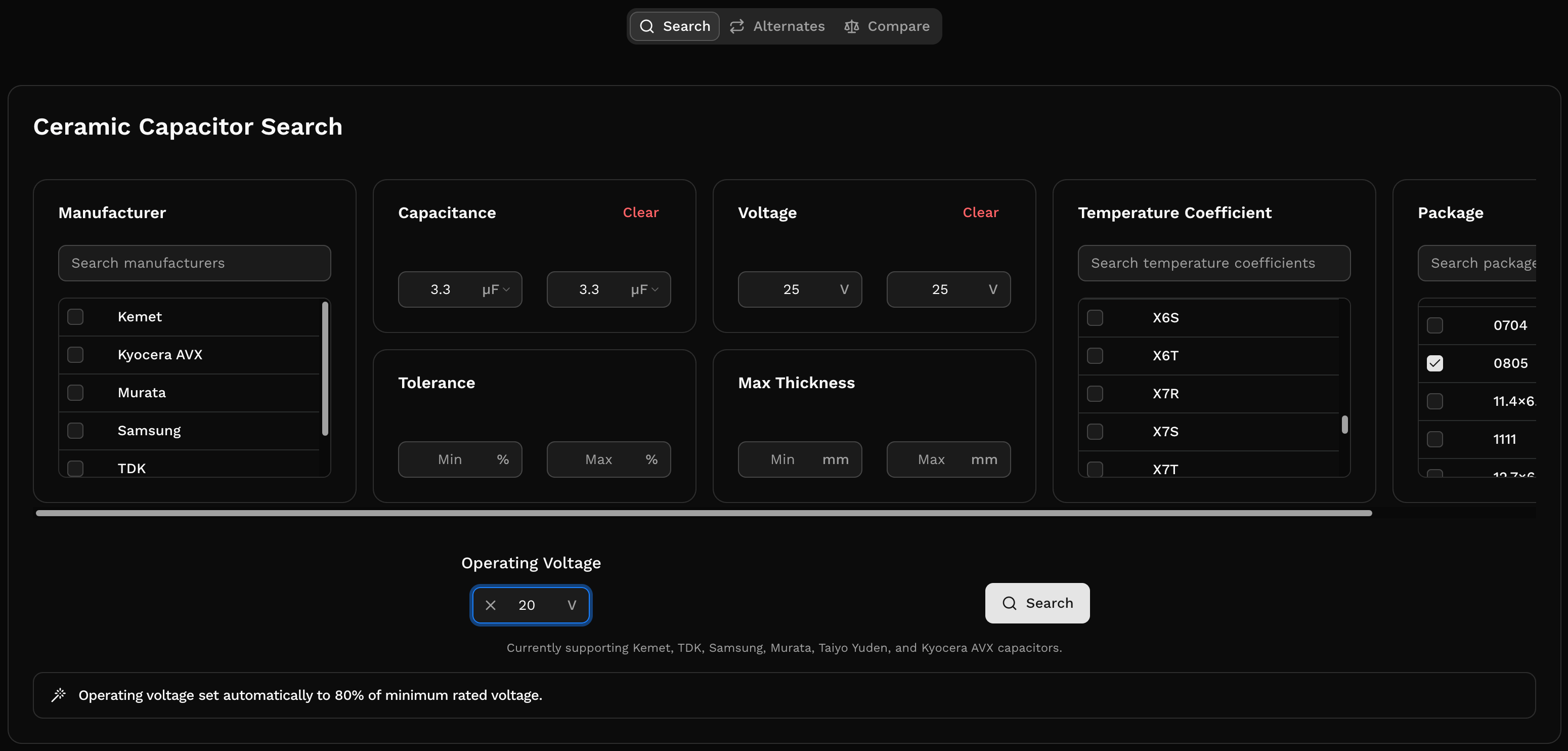

Specify your operating voltage to auto-calculate DC bias capacitance retention. It shows up directly in the results table as a sortable column.

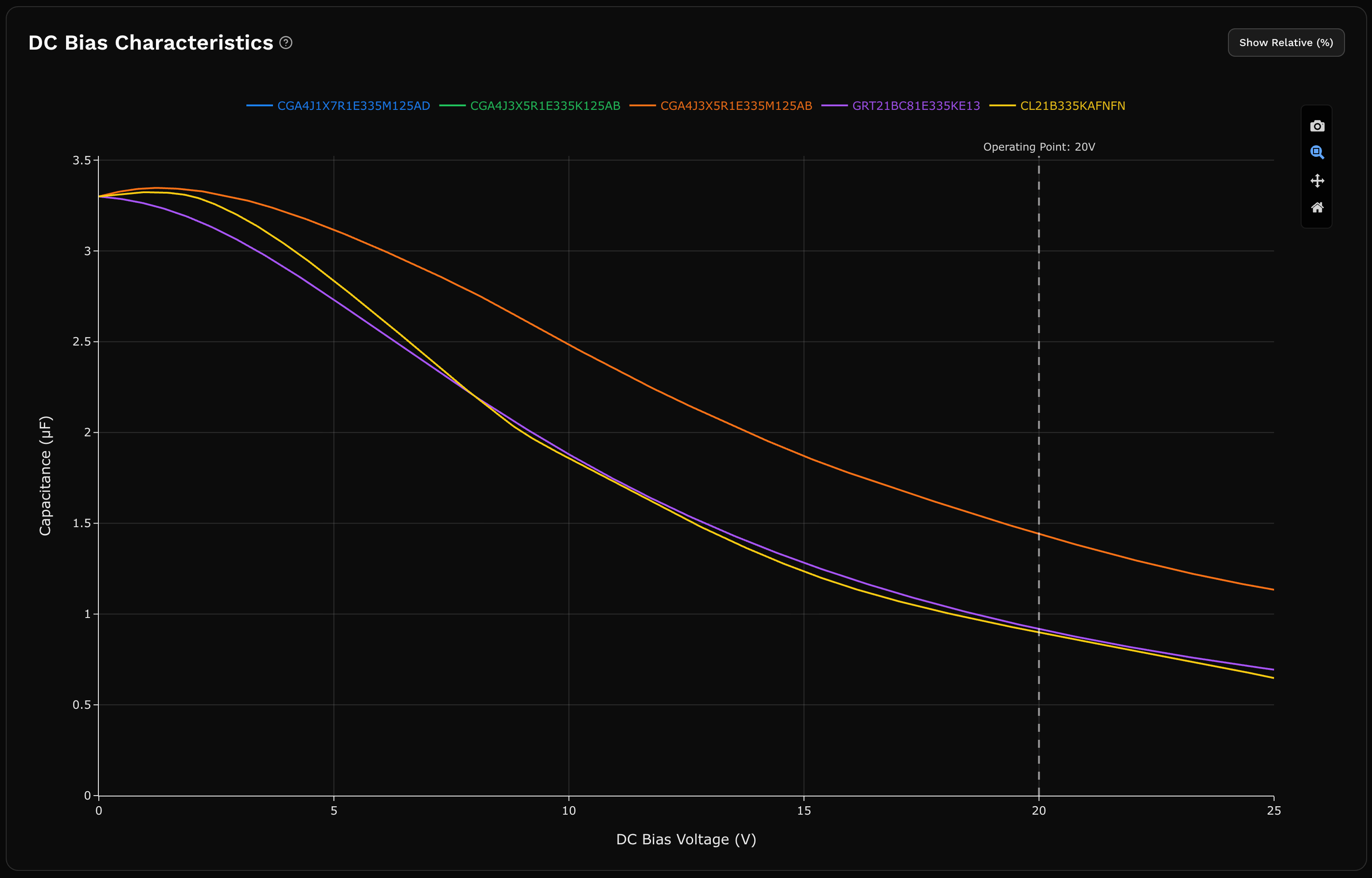

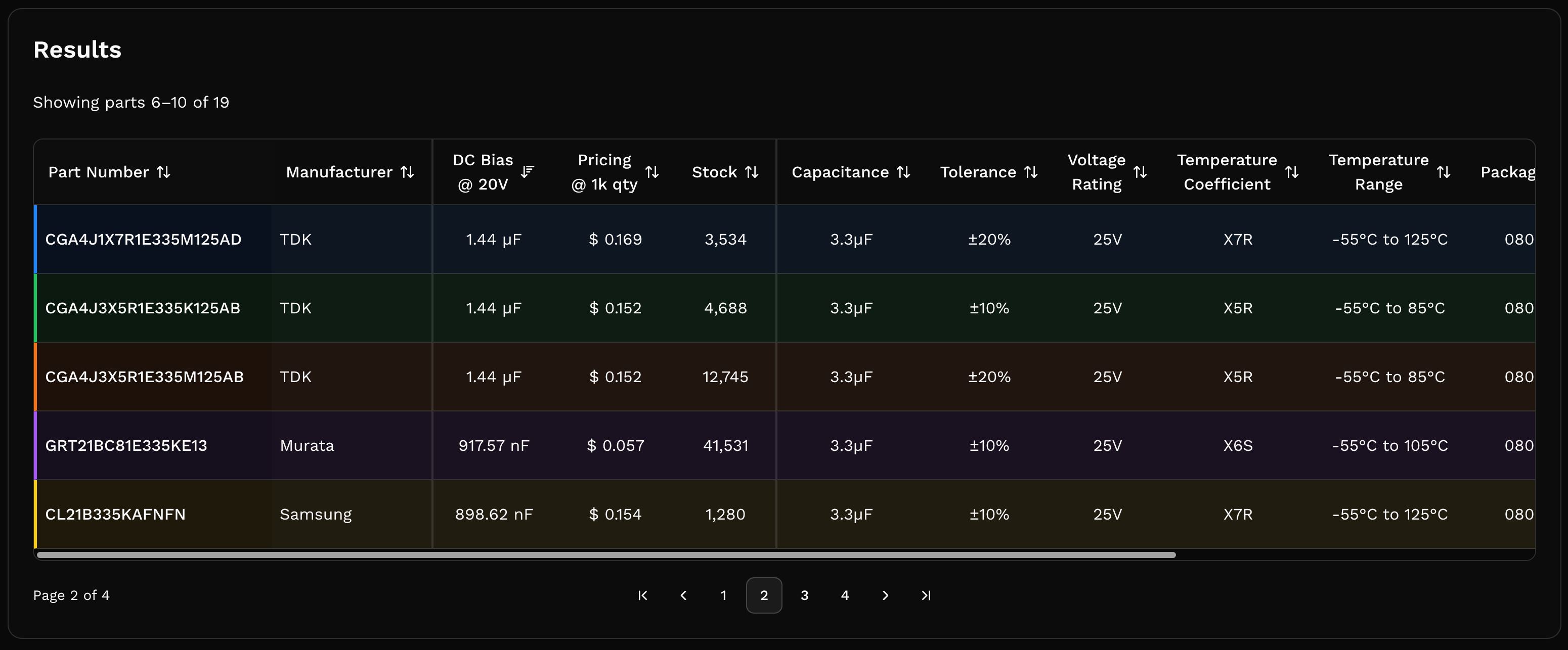

Curves are synced with the results table. As you sort by your favorite columns or flip through pages, the curves update automatically to match the table.

Newark Partnership

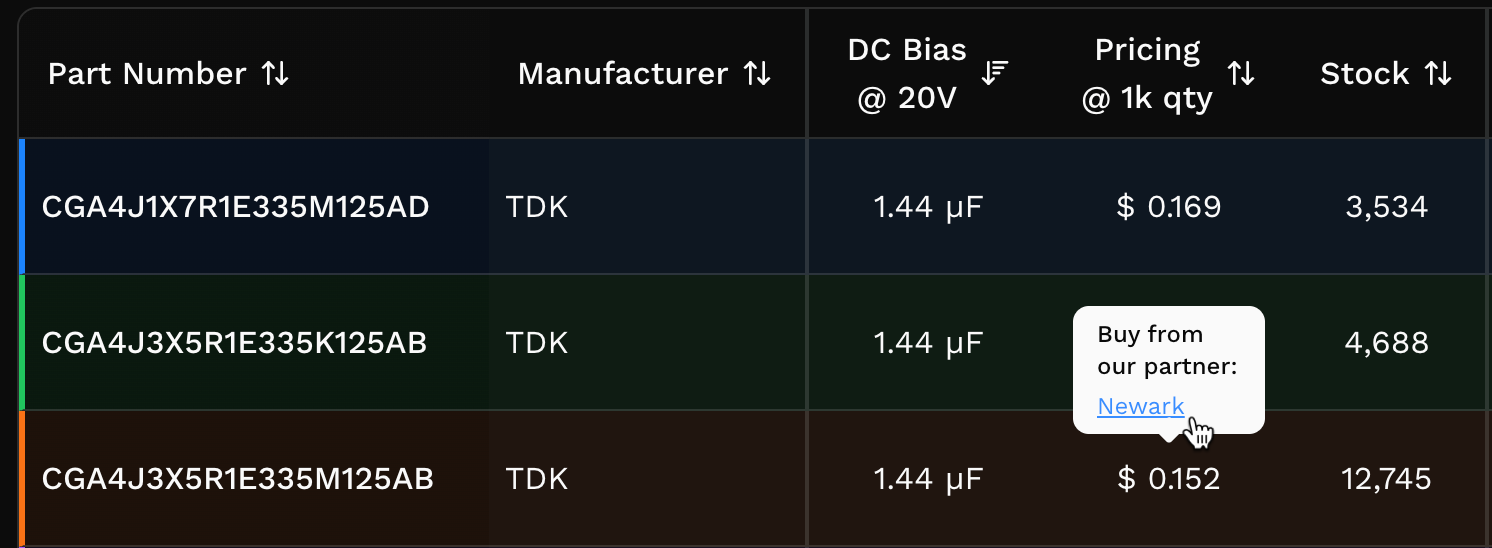

Also excited to announce a distributor partnership with Newark! Parts available at Newark now include direct purchase links. Merlin earns a small commission on parts purchased through our links.

Increased Pricing Coverage

We've also increased our pricing info to further cover our supported manufacturers.

Stock + Price Information and Taiyo Yuden Support

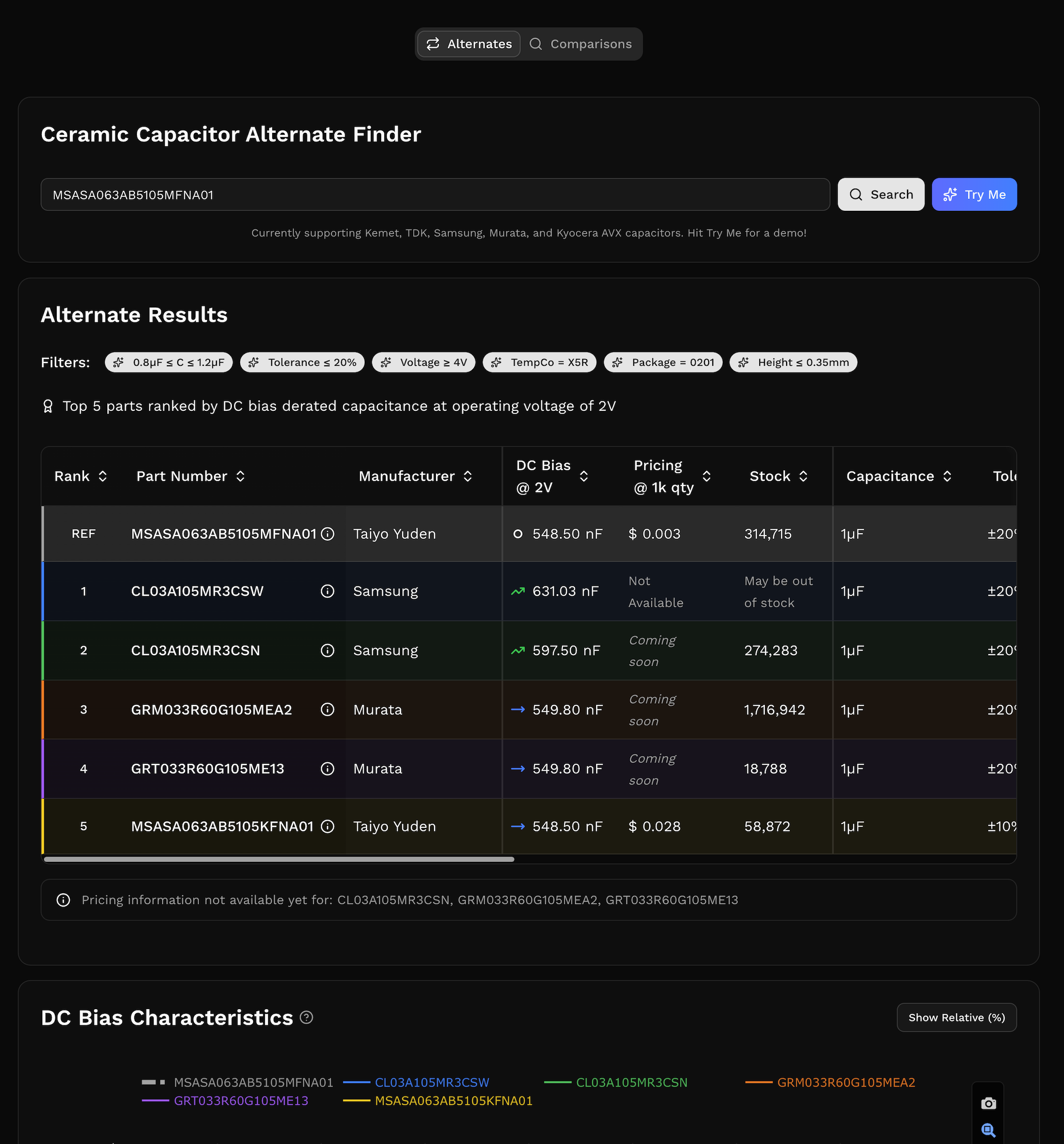

Merlin now has stock information for all of our supported manufactures. Also excited to be adding Taiyo Yuden as one of our supported manufacturers.

Pricing

We also have pricing information now available for Kemet, Kyocera AVX, and Taiyo Yuden. You'll be able to view the median price at QTY=1000 for components from these manufacturers. You can sort components by price by clicking on the column header, similar to the other tabular data for components.

Updated Tooltips

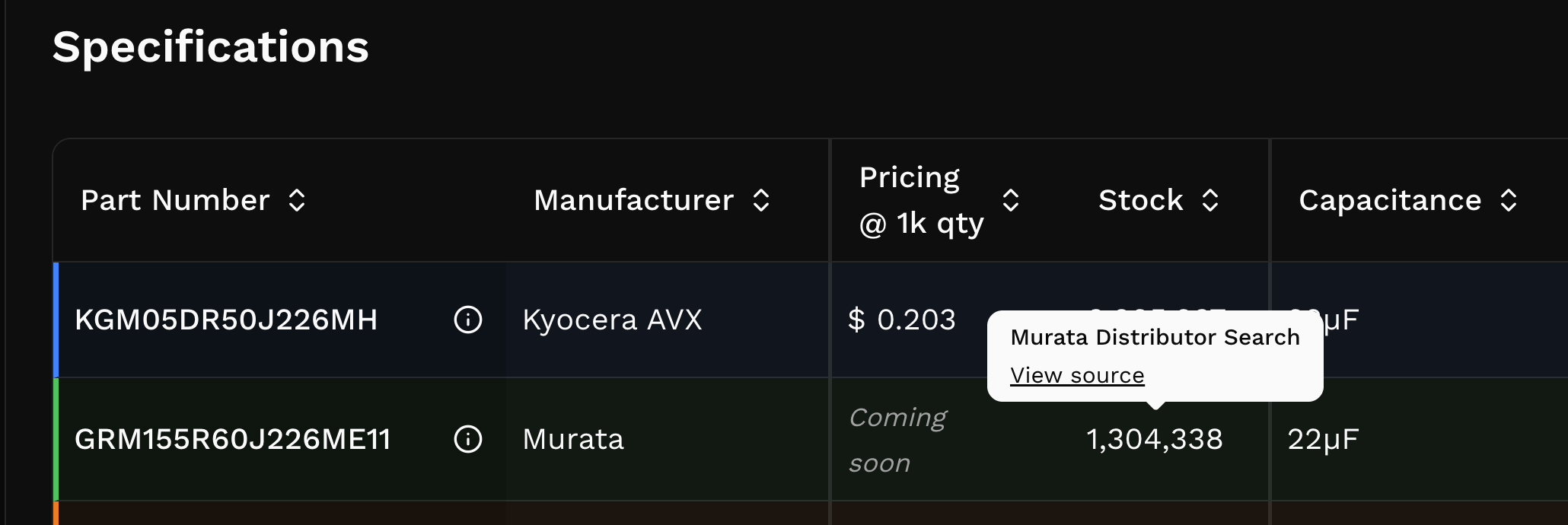

In the stock column, if you hover over the stock number you'll get a tooltip that takes you to the distribution inventory for the manufacturer.

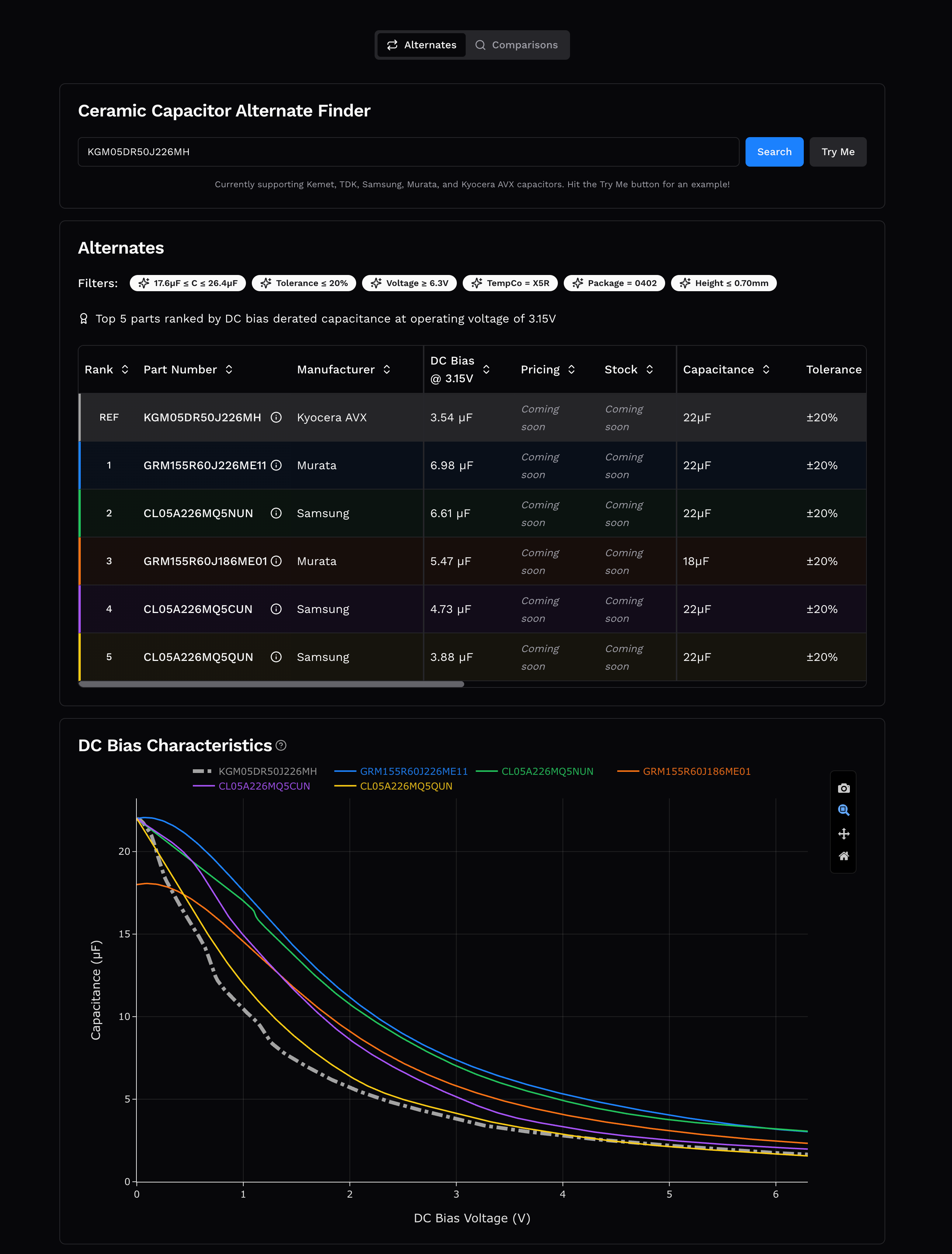

Alternates Tool: Find Drop-in Capacitor Replacements

Find drop-in replacement capacitors ranked by DC bias performance. Input a part number and the tool will find top drop-in replacements that most closely meet the specs of the reference part ranked by DC bias derated capacitance. Alternates ranking by pricing and availability information in development.

This automates the tedious process of cross-referencing multiple manufacturer datasheets and performance curves. Verify the recommendations via the specs table and the performance graphs below. Hit the Try Me button for a demo.

Currently supporting ceramic capacitors from Murata, Kemet, TDK, Samsung, and Kyocera AVX. More manufacturers and component types coming soon.

Performance Improvements

• Expanded part number search coverage across all supported manufacturers
• Faster search response times

Legal Stuff

We updated our Privacy Policy and Terms of Service to clarify that we do not sell personal data; any information we collect is used to improve the speed and quality of our product and services.

Introducing Merlin's Changelog

We're starting this changelog to keep you up to date on new features and improvements.

The Story So Far

• The ceramic capacitor analysis tool allows engineers to easily compare specs and graphs of capacitors from Murata, Kemet, TDK, Samsung, and Kyocera AVX with detailed technical specifications and performance graphs.
• Added explanations of DC bias derating, ESR characteristics, and other critical parameters for circuit design.
• Search a single part to analyze it on its own or compare multiple parts.
